FB-PP509H
Polypropylene, 70%

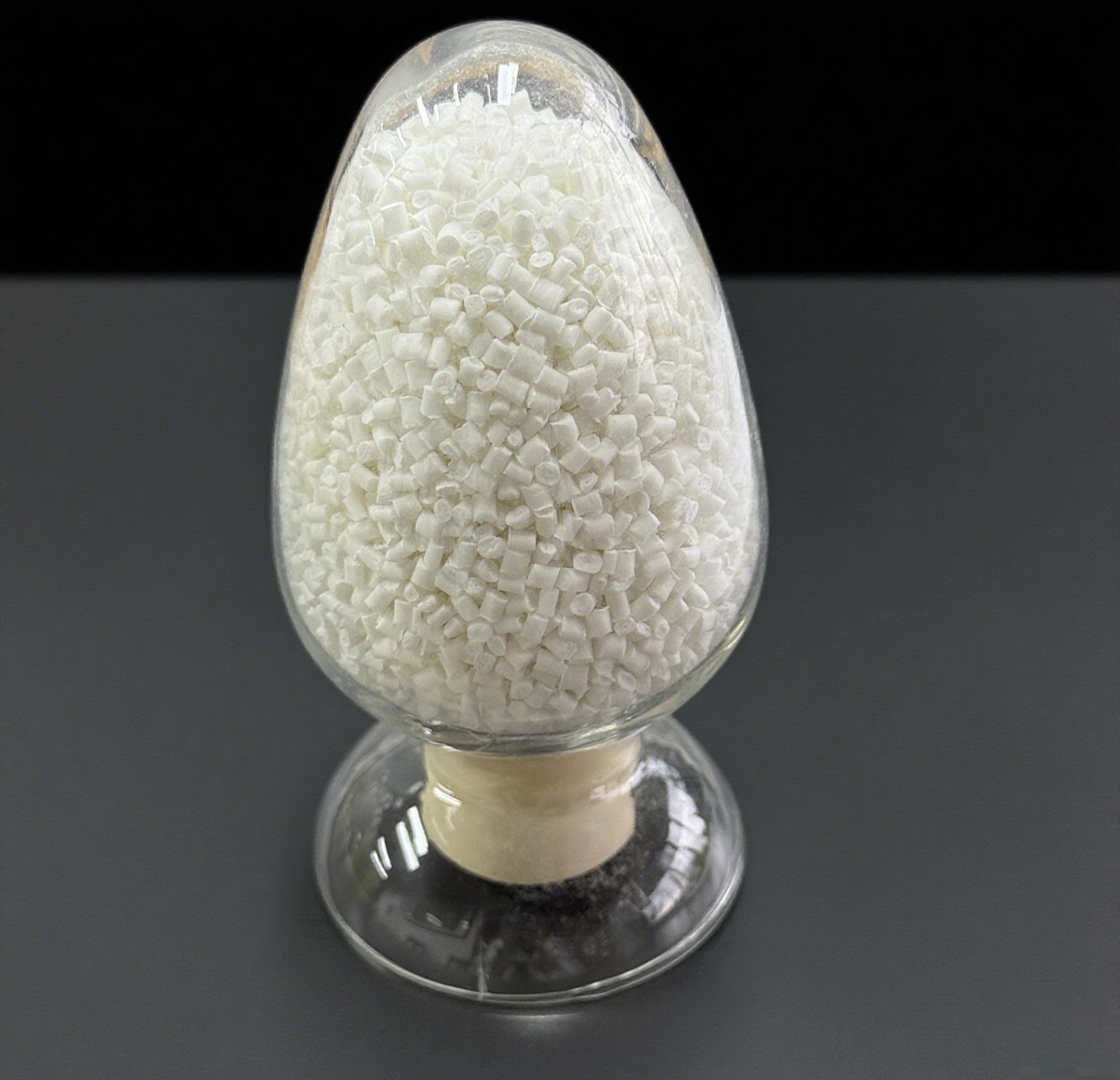

White Granules
Automotive Garde Polypropylene Corrugated Pipe, Baking-resistant PP General Applications
| Quantity: | |
|---|---|
PRODUCT DESCRIPTION：
FB-PP509H is a brominated phosphorus and nitrogen based flame retardant masterbatch for polypropylene (PP), containing 50% flame retardant and 50% PP carrier resin. This product is specially developed for automotive PP corrugated pipe, which achieves the self-extinguishing flame retardant rating after 90℃ baking treatment for 1000 hours. FB-PP509H exhibits good compatibility with PP materials such as homopolymerisaton, copolyerisation, and filled systems (suitable filler e.g. suitable for talcum powder, pigments; unsuitable filler e.g. calcium carbonate). FB-PP509H achieves UL94 V2 flame retardant rating under environmental regulations (total halogen content of the flame retarded material < 900ppm) such as RoHS, REACH, and PAHS.
SPECIFICATION：
| Item | Value |
| Appearance | White Granules |
| Water/Moisture | < 0.3% |
| Flame Retardant Content | 50% |
| Decomposition Temperature | 280℃ |
BENEFITS
Excellent compatibility with PP materials, less precipitaion, and less side effects on the physical and mechanical properties.
Good processability in contrast to conventional powder flame retardat products.
Good appearance of PP injection molding products, less in-mould deposit.
Compliant with regulations like RoHS, REACH, PAHS, based on UL94 V2 flame retardant rating terminal products.
APPLICATIONS
FB-PP509H is specially developed for automotive PP corrugate pipe, a dosage of 6~8% (by wt.) is usually sufficient to achieve
self-extinguishing flame retardant rating after 90℃ baking treatment for 1000 hours.
FB-PP509H is also suitable for applications such as injection molding and common PP corrugated pipes.
In PP Homopolymers:
A dosage of 2~ 3% (by wt.) of FB-PP509H is usually sufficient to achieve UL 94 V2 (0.8~3.2mm) flame retardant rating, passing
the glow wire test (GWIT 750°C and GWFI 960°C).
In PP Copolymers:
A dosage of 5~ 7% (by wt.) of FB-PP509H is usually sufficient to achieve UL 94 V2 (0.8~3.2mm) flame retardant rating, passing
the glow wire test (GWIT 750°C and GWFI 960°C).
PACKAGING & STORAGE
FB-PP509H is packed in paper-plastic bags with polyethylene inliner, 25kg per package.
FB-PP509H should be stored in a dry and cool place, avoid direct sunlight. Partially emptied containers should be carefully resealed after use.
