FB-PC4001HF
YINYUAN New Material
Semi-transparent Granules
Polycarbonate
< 0.3
350

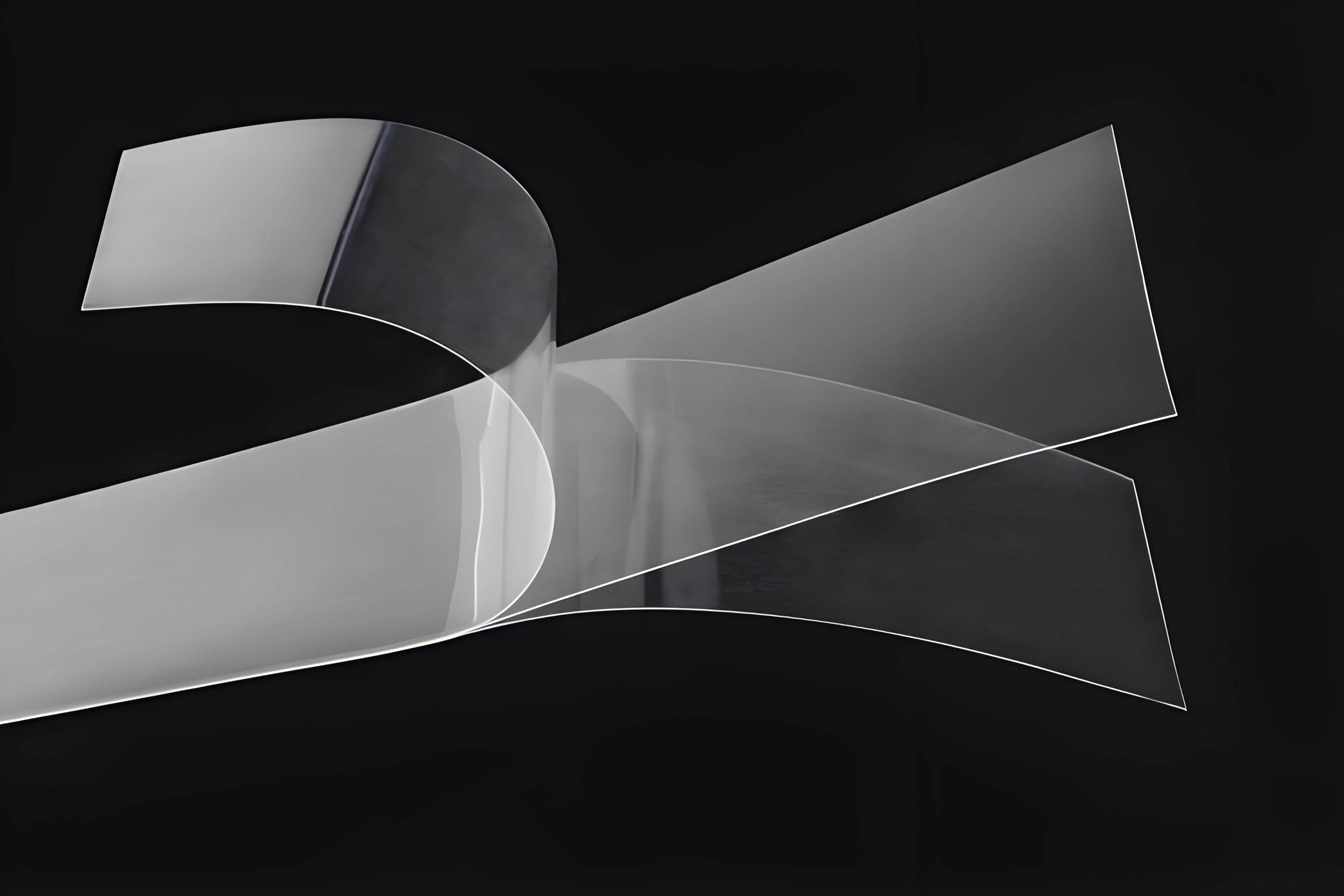

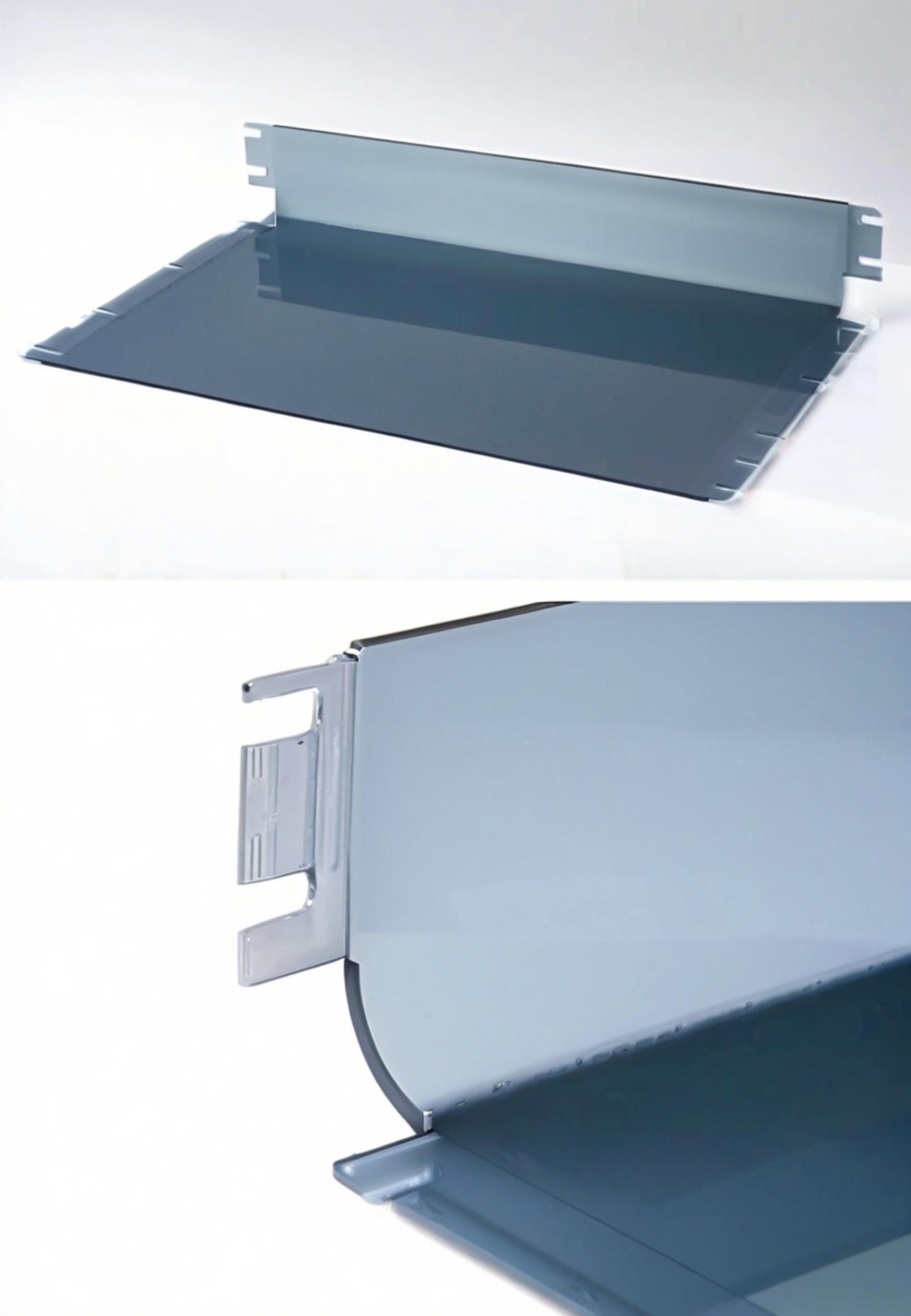

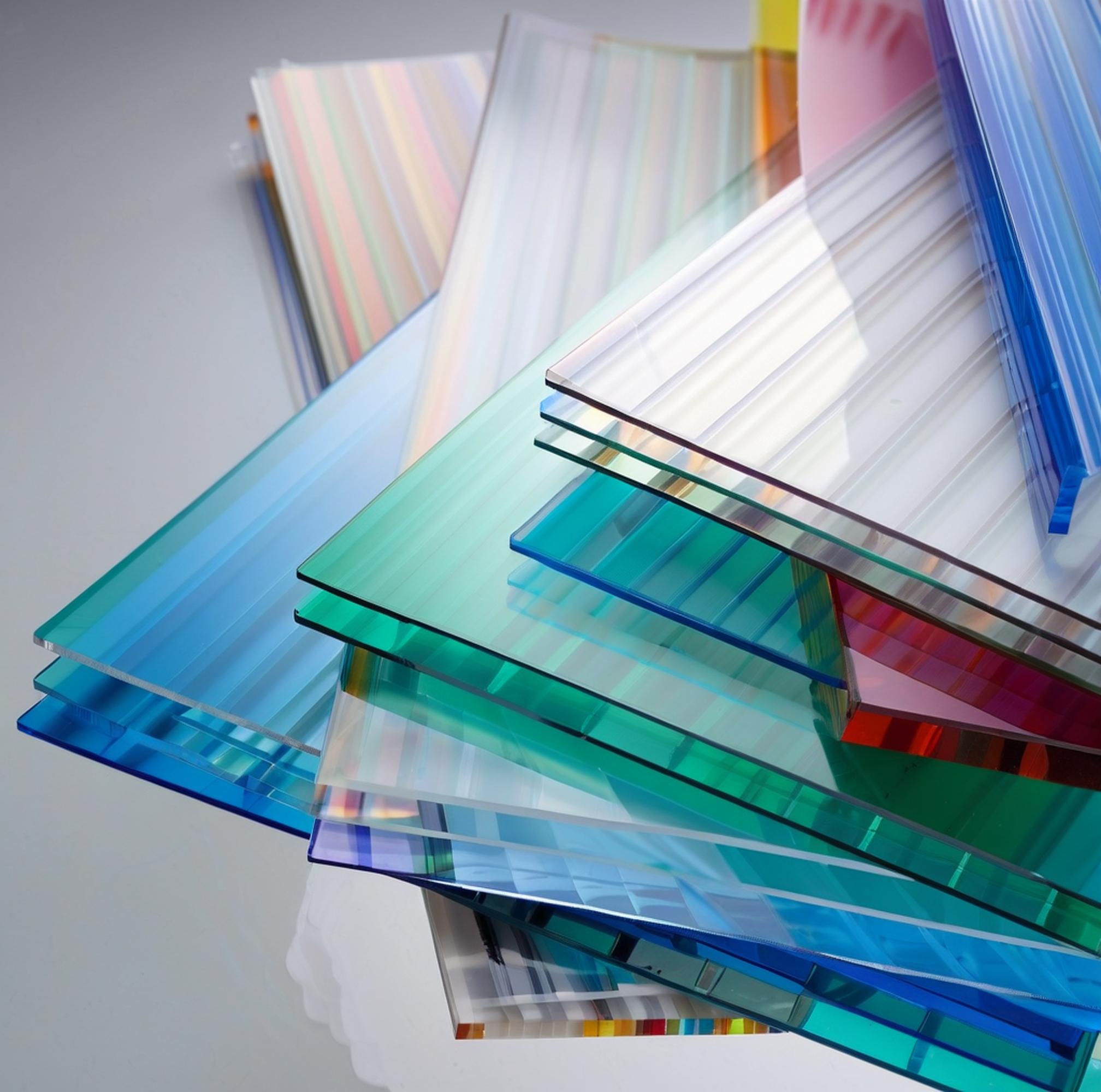

PC Films, PC Boards
| Quantity: | |
|---|---|
FB-PC4001HF is a non-halogenated semi-transparent flame retardant masterbatch for polycarbonate (PC), particularly suitable for PC applications like films, boards, and injection molding. This product has good compatibility with resins, low precipitation, a low dosage is usually sufficient to achieve the most efficient rating. The flame retarded PC material exhibits good flame retardant effect, high transparency, and good physical and mechanical properties. FB-PC4001HF is under the environmental regulations like RoHS, REACH, and PATH.
| Characteristics | Target Value |

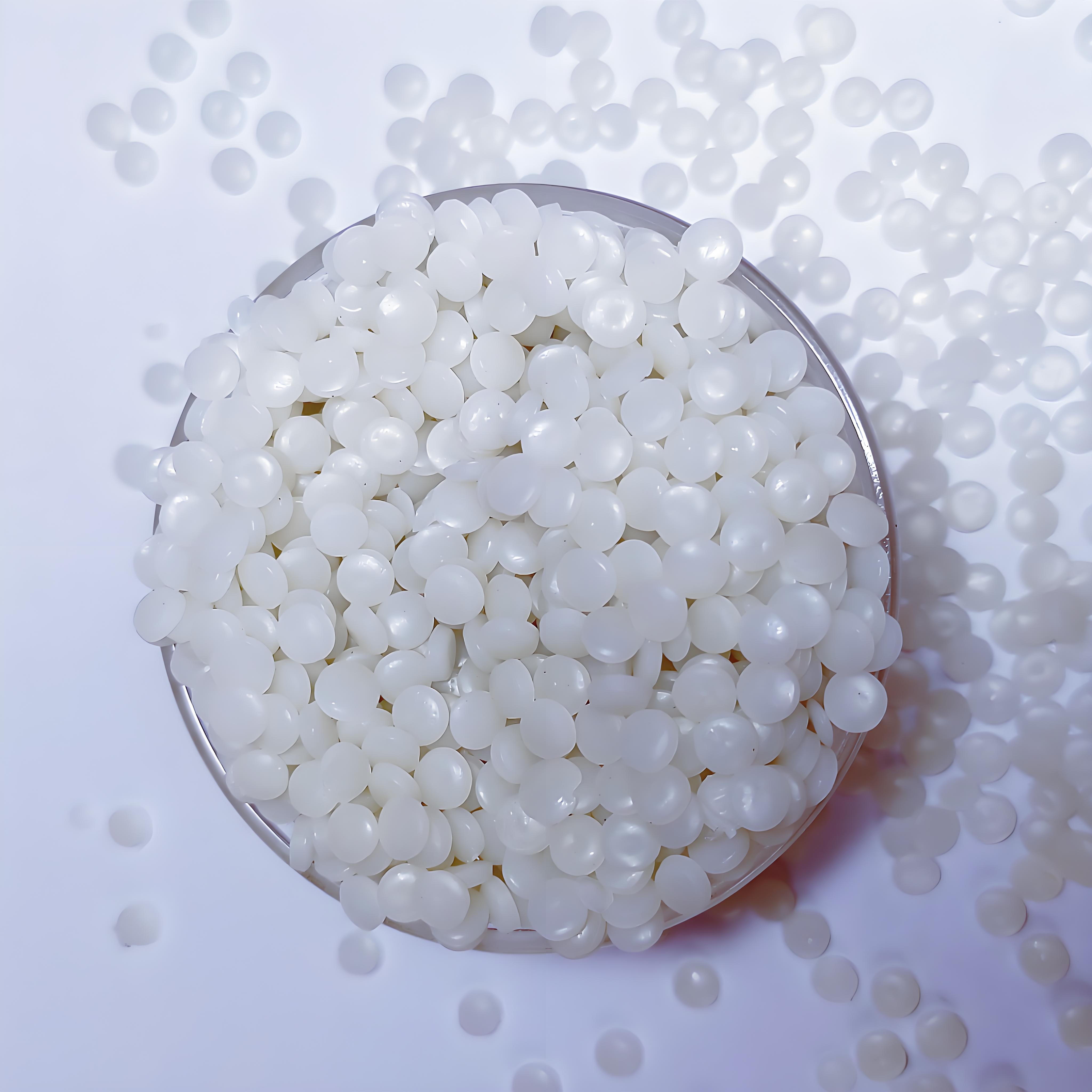

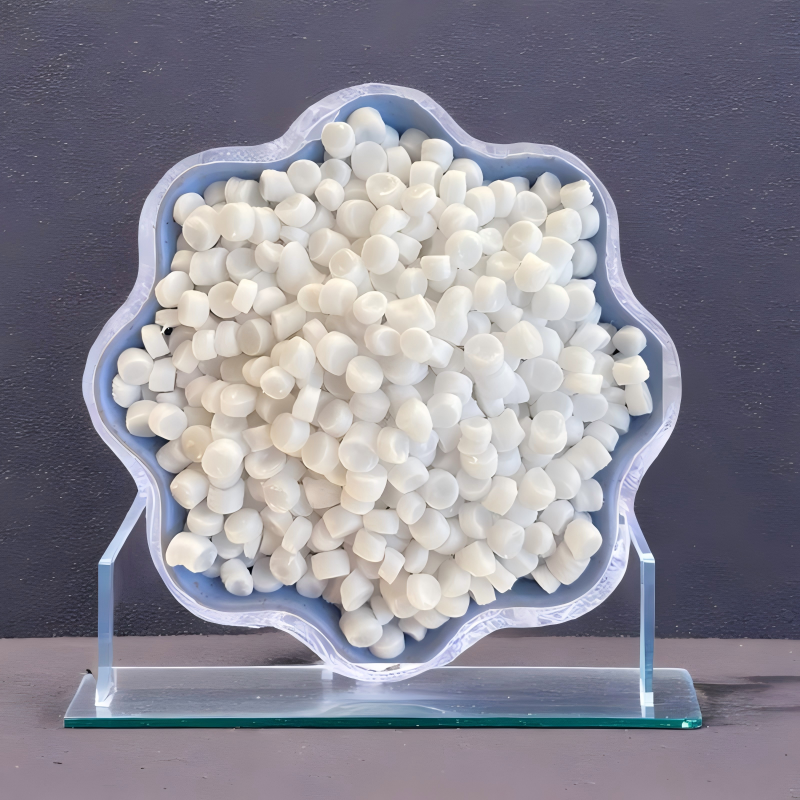

| Appearance | Semi-transparent Granules |
| Water/Moisture | < 0.3% |
| Decomposition Temperature | > 350℃ |
Good flame retardant effect, low addition amount to achieve efficient rating.
Good compatibility with resin, less precipitaion.
Less side effects on PC materials, good physical and mechanical properties (e.g. high transparency).
Good processability in contrast to conventional powder flame retardat products.
Non-halogenated flame retardant product with favourable environment and health profile.
FB-PC4001HF is widely used in PC applictions such as PC modification, injection molding, calendering products. A dosage of 3~5% (by wt.) of FB-PC4001HF is usually sufficient to achieve UL94 V0 rating (1.6~3.2 mm).
FB-PC4001HF may be affected by toughener and recommended dosage should no more than 1% (by wt.).
FB-PC4001HF has synergistic effect with anti-dripping agent (e.g. FR-PT105).
Formula and Physical Property Data:
Characteristics | Test Method | Unit | Formula A | Formula B | Formula C |
PC | % (w/w) | 100.0 | 100.0 | 100.0 | |
FB-PC4001HF | % (w/w) | - | 2.5 | 2.5 | |
Tensile Strength | ASTM D638 | MPa | 70.2 | 70.1 | 69.9 |
Elongation at Break | ASTM D638 | % | 130.3 | 128.5 | 126.2 |
IZOD Impact Strength | ASTM D256 | kJ/m2 | 79.4 | 78.5 | 77.2 |
Flame Retardant Grade | UL94 (1.6 mm) | V-2 | V-1 | V-0 |
Supplied in 25 kg packages, each contained within a woven bag lined with plastic.
Shipped as non-toxic and non-hazardous cargo.
Store in a dry environment, protected from moisture, to preserve product quality.
We have 6000 square meters of factory area, multiple production lines to meet the demand of huge order quantity, advanced equipment and professional staff to meet all your customized needs.
We accept major international payment methods, including L/C、D/P、D/A、T/T、MoneyGram.
We support air, sea and land transport，such as FedEx.
