FB-PA602AH

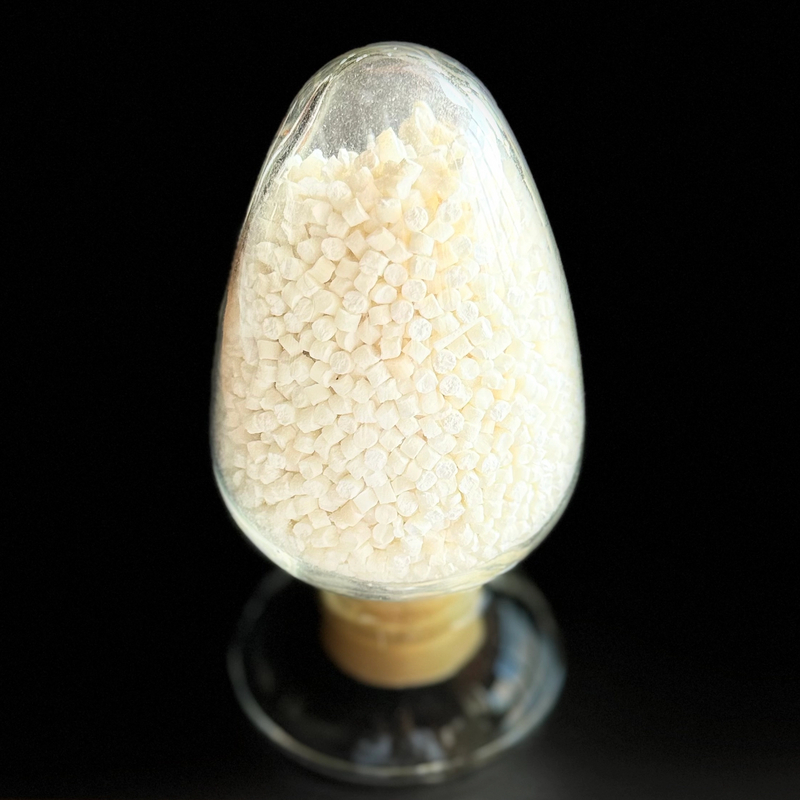

Flame Retardant Masterbatch for Polyamide
Product Description：

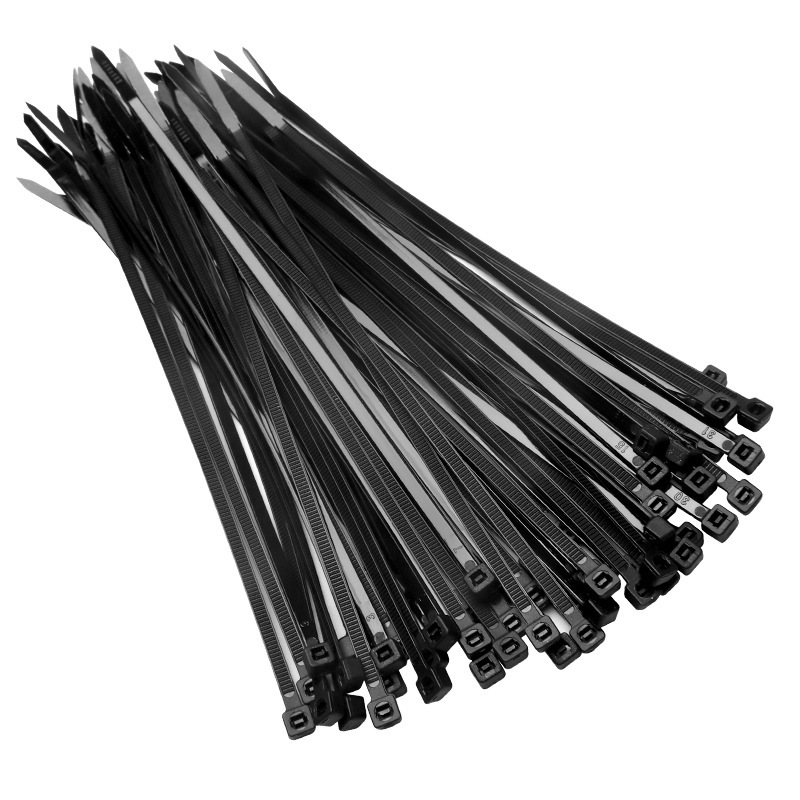

FB-PA602AH is a phosphorus and silicone based flame retardant masterbatch for polyamide (PA/ nylon), with PA6 as the carrier resin. This product is specially developed from a nano-formula, it exhibits excellent flame retardant effect, and the flame retarded PA has high whiteness and good physical properties in contrast to conventional phosphorus-phosphorus or phosphorus-nitrogen based flame retardant masterbatch. FB-PA602AH is suitable for applications such as PA plastic modification, injection molding, nylon cable tie, and etc.
Benefits：
l Excellent flame retardant effect.
l Good thermal stability, and high decomposition temperature.
l Flame retarded materials exhibit good physical and mechanical properties.
l Good processability, less dust formation in contrast to conventional powder products.
l Non-halogenated flame retardant with favourable environment and health profile.
Specifications：
Characteristics | Unit | Target Value |
Appearance | white granule | |
Moisture/ Water | % (w/w) | < 0.3 |
Phosphorus Content | % (w/w) | 16.0-18.0 |
Decomposition Temperature | ℃ | > 300 |
Applications：
FB-PA602AH is specially developed for nylon flame retardant, suitable for plastic modification in nylon. This product has excellent and stable flame retardant effect, good processability, and less dust formation in contrast to conventional powdery flame retardants. A dosage of 18-20% (by wt.) of FB-PA602AH is usually sufficient to achieve UL94 V0 rating (1.6mm).
FB-PA602AH is also suitable for glass fibre reinforced and non-reinforced nylon injection molding. Most efficient flame retardant effects would be obtained by mixing FB-PA602AH and nylon. The dosage of FB-PA602AH may vary based on glass fibre content.
Care must be taken that FB-PA602AH should not be used with olefins.
Formula and Physical Property Data:
Characteristics | Unit | Formula A | Formula B |
30% Glass Fibre Reinforced PA6 | % (w/w) | 79.7 | |
30% Glass Fibre Reinforced PA66 | % (w/w) | 80.7 | |
FB-PA602AH | % (w/w) | 20.0 | 19.0 |
SR-400 (Siloxane) | % (w/w) | 0.3 | 0.3 |
Characteristics | Test Method | Unit | Formula A | Formula B |
Melting Index | ASTM D1238 | g/10 min | 23.6 | 22.6 |
Density | ASTM D792 | g/cm3 | 1.45 | 1.45 |
Tensile Strength | ASTM D638 | MPa | 127 | 145 |
Elongation at Break | ASTM D638 | % | 1.8 | 2.2 |
Bending Strength | ASTM D790 | MPa | 205 | 220 |
IZOD Impact Strength | ASTM D256 | kJ/m2 | 13.9 | 14.2 |
Flame Retardant Grade | UL94 (1.6 mm) | V-0 | V-0 |
Packing and Handling:
Delivery form:
White powder.
Packing:
FB-PA602AH is packed in paper-plastic bags with polyethylene inliner, 25kg per package.
Storage:
FB-PA602AH should be stored in a dry and cool place, avoid direct sunlight.
